PSK-3.3k Sectionolizing Points

Effective solutions for 3.3 kV DC contact network switching and protection against short circuits and overloads

reduction of electric power losses
full factory readiness
minimum amount of installation work
reliability and safety of maintenance

PSK-3.3k is applied for electrical connection of double-track and single-track contact network sections of electrified railways, and protection against overload currents.

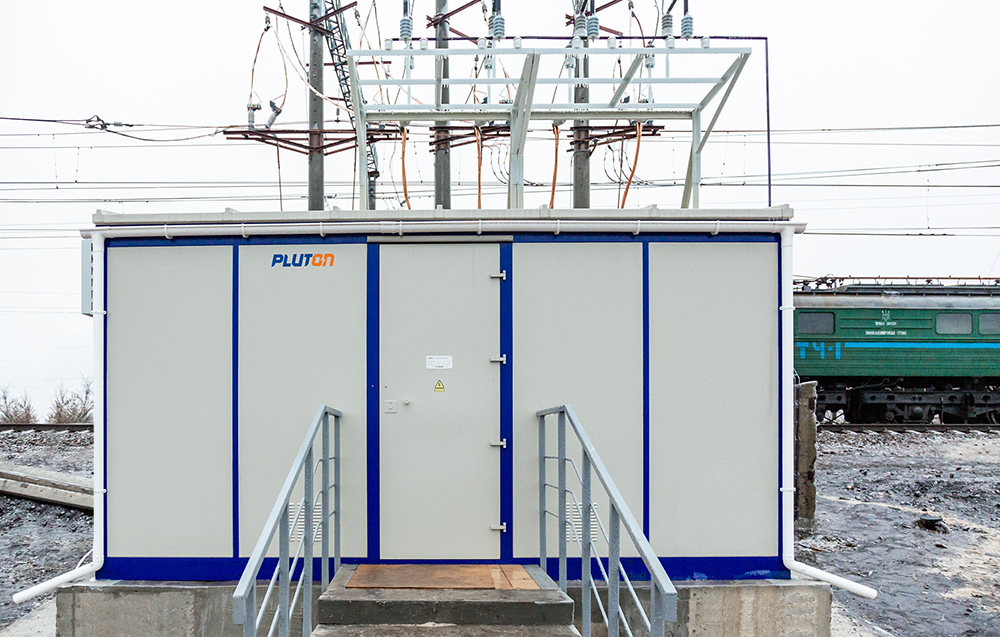

The sectionalizing point is delivered as fully factory-ready modules with assembled and adjusted power and auxiliary equipment, with minimum on-site installation work.

The module is a non-separable metal container with IP53 protection degree according to DSTU IEC 60529:2019. All metal parts are covered with anti-corrosion galvanic and paint materials. The walls, floor and roof of the module are equipped with thermal insulation that is highly resistant to thermal loads and is fire-resistant.

PSK-3.3k includes modern DC switchgear manufactured by PLUTON, equipped with reliable circuit breakers that ensure efficient switching and protection of electrical networks. This reduces the risk of emergencies and increases the efficiency of power supply to the railway infrastructure.

PSK-3.3k is equipped with all the necessary systems for safe and efficient operation:

  • ventilation and air conditioning,
  • heating,
  • lighting,
  • fire and burglar alarms.

PSK equipment

  • 3300 V DC SWITCHGEAR

    Safe and reliable power distribution using intelligent control systemsZobacz oferty

  • SOTA® PROGRAMMABLE LOGICAL CONTROLLER AND PROTECTION SYSTEM

    SOTA® is a combined microprocessor-based relay protection device with IEC61850 protocol supportZobacz oferty

  • SHOT1M OPERATING CURRENT CABINET

    Operating current cabinet based on high-frequency voltage converterZobacz oferty

  • Low voltage switchgears series KRU-0.23k, KRU-0.4k

    Reliable low-voltage switchgear for power supply of auxiliaries and sub-consumers of 0.4 kVZobacz oferty

  • LINE TEST DEVICE

    Saving circuit breaker life by applying effective solutions for detecting short circuits in supply lineZobacz oferty

  • CIRCUIT BREAKER TEST DEVICE (CBTD)

    Advanced device for precise, fast and safe testing of high-speed DC circuit breakersZobacz oferty

  • TELEMECHANICS CABINET SHTM

    Allows fast receipt of reliable data on the status of the whole PSK, control and comprehensive evaluation of the equipment and contact network statusZobacz oferty

Range of services

  • Designing

    Designing

    Full range of design works, including pre-project survey and development of documentation, taking into account individual customer requirements

    We implement innovative solutions in the concept of facility design, in selection of equipment and materials, in compliance with current state building codes and international standards in the field of design and construction.



  • Manufacturing and transportation

    Manufacturing and transportation

    Delivery of complete factory-ready PSK with all necessary components and documentation

    Sectionalizing points are manufactured at Pluton's own production facilities in accordance with internal standards or technical requirements of the Customer. Pluton's own warehouses allow prompt delivery, and wide geography of representative offices ensures efficient logistics and fast order implementation.

  • Connection and commissioning

    Connection and commissioning

    Full range of commissioning works with connection and start-up of sectionalizing points within a clearly defined time frame

    Equipment is commissioned by highly qualified specialists in accordance with applicable standards, rules and technical documentation, ensuring compliance with all safety requirements, fast start-up and uninterrupted operation of the equipment.

  • Technical support and service maintenance

    Technical support and service maintenance

    Comprehensive technical support at every stage of operation

    We provide consultative technical support over the entire life cycle of equipment, as well as a full range of services, including diagnostics, setting up, repair and adjustment. We provide training for the Customer's operational and technical staff to ensure safe and efficient operation. This guarantees long-term, uninterrupted operation of the systems and reliable functioning of the facility as a whole.

Quality assurance and modern technologies

We offer a modern solution based on advanced technologies and high-quality equipment and materials. PSK-3.3k ensures efficient switching and protection of networks, reduces the risk of accidents and increases the efficiency of railways power supply. PSK-3.3k meets the highest standards of power supply and is based on control systems that support IEC 61850, ensuring reliability, safety and compliance with modern automation requirements.
